BH-UTCO1 FPV Uncooled Infrared Core Module

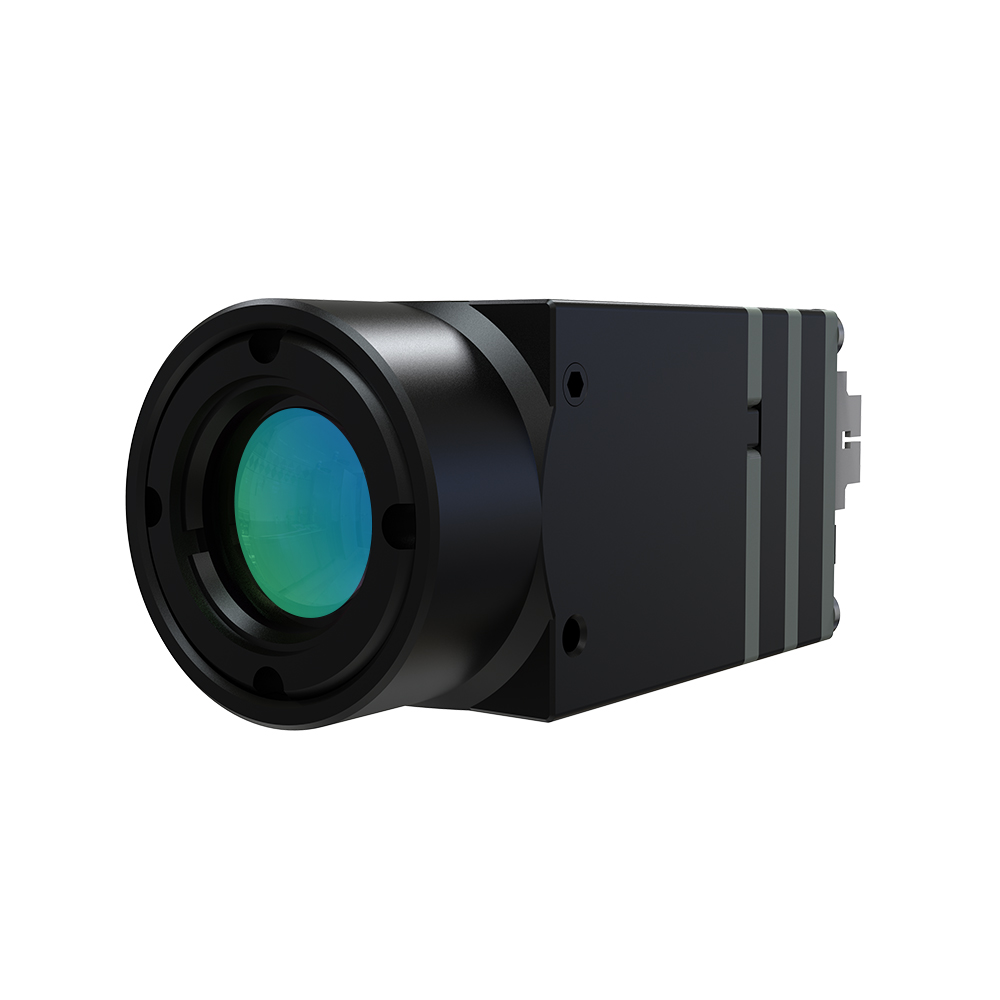

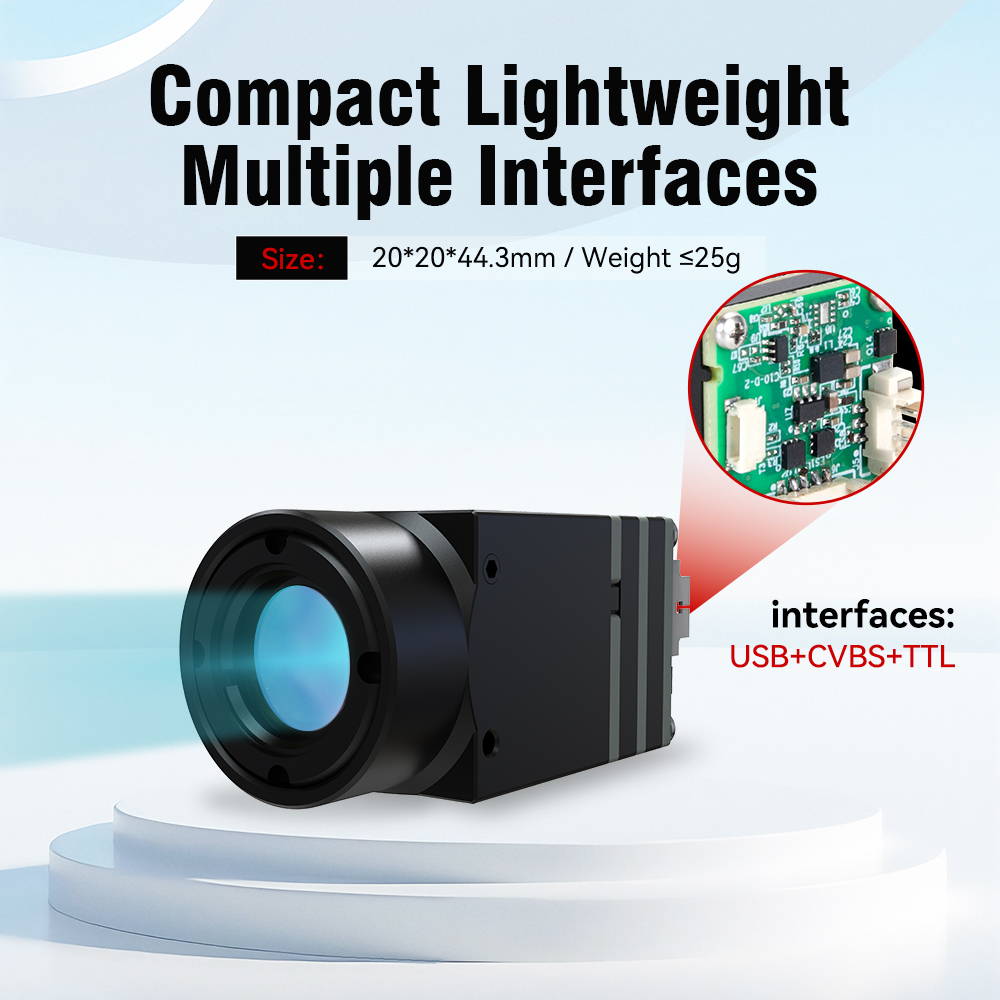

Miniature & lightweight: 20×20mm core, ≤25g without lens, low power consumption
High-resolution imaging: 640×512 detector with 12μm pixel pitch and DDE enhancement
Multi-interface support: CVBS analog video, USB2.0 and TTL serial ports
Wide temperature tolerance: Operates stably from -40°C to +60°C
Complete serial control: Hex command set for adjustable image parameters
Product Advantages
1.Rich compatible lens options: Multiple focal length lenses (9.1mm, 13mm, F1.0 aperture) are optional, which can meet different distance detection and field-of-view requirements of thermal imaging equipment.
2.Excellent image quality indicators: The detector achieves MRTD ≤350mK, supports automatic non-uniformity correction (NUC) and bad pixel correction, delivering reliable and low-noise thermal imaging effect.
3.Strong signal transmission compatibility: CVBS analog video follows PAL 25Hz standard with outstanding anti-interference capacity; USB2.0 runs at 480Mbps high speed and supports UVC protocol for plug-and-play video transmission.
4. Wide application compatibility: It can be widely deployed in thermal scopes, helmet night vision devices, drones, automotive thermal electronics and multispectral fusion products with low power consumption.
5. User-friendly controllable system: All core components support independent control; matching dedicated PC host software allows direct command input, and each serial command adopts response confirmation mechanism to ensure stable and accurate parameter configuration.
Product Parameters

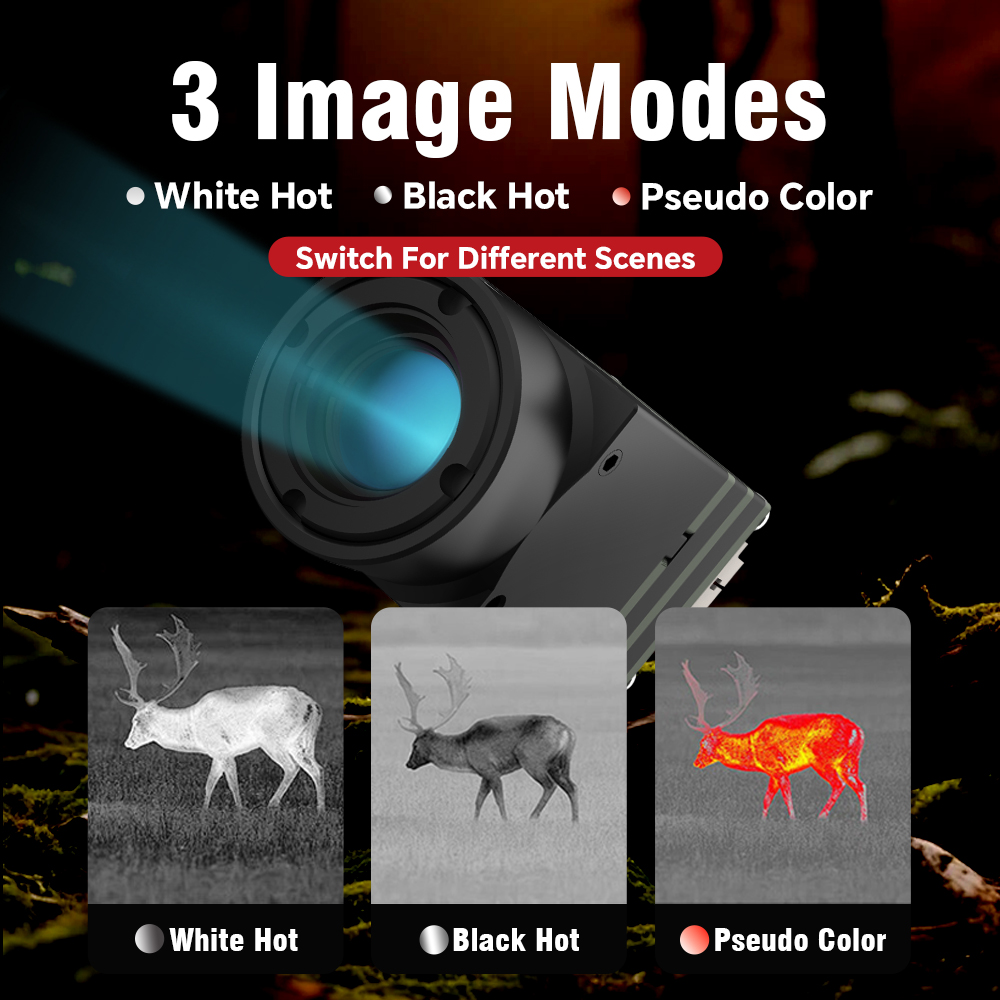

| Detector | Model | BH-UTC01-691 | BH-UTC01-613 | BH-UTC01-625 |
| Detector Type | UFPA(Vox) | |||
| Resolution | 640(H)×512(V) | |||
| Frame Rate | 50Hz/25Hz | |||
| Pixel Pitch | 12μm | |||
| MRTD | ≤ 350mK | |||
| Lens | Focal Length | 9.1mm | 13mm | 25mm |
| Aperture | F1.0 | F1.0 | F1.0 | |
| Field of View | 48° X 38° | 36° X 29° | 22° X 18° | |
| lmage Processing | Bad Pixel Correction | Yes | ||
| NUC | Yes | |||
| DDE | Yes | |||
| Basic Functions | Correction Interval | Time/Temperature | ||
| lmage Correction | Manual/Auto (Shutter) | |||
| Brightness/Contrast | Manual/Auto | |||
| lmage Mode | White Hot/Black Hot/Pseudo Color | |||
| Power Supply | Voltage | DC 12V(5V~15V) | ||
| Power Consumption | ≤0.8W | |||
| Reverse Polarity Protection | Yes | |||
| Interface | Video Output | USB(Default)/50HZ CVBS(PAL)/25HZ | ||
| Communication | USB to Virtual COM Port | |||
| Environment | Operating Temperature | -40°C~+60°C | ||
| Storage Temperature | -45°C~+70°C | |||
| Physical | Weight(w/o Lens) | ≤25g | ||
| Dimensions (w/oLens) | 20mm x20mm x44.3mm | |||
