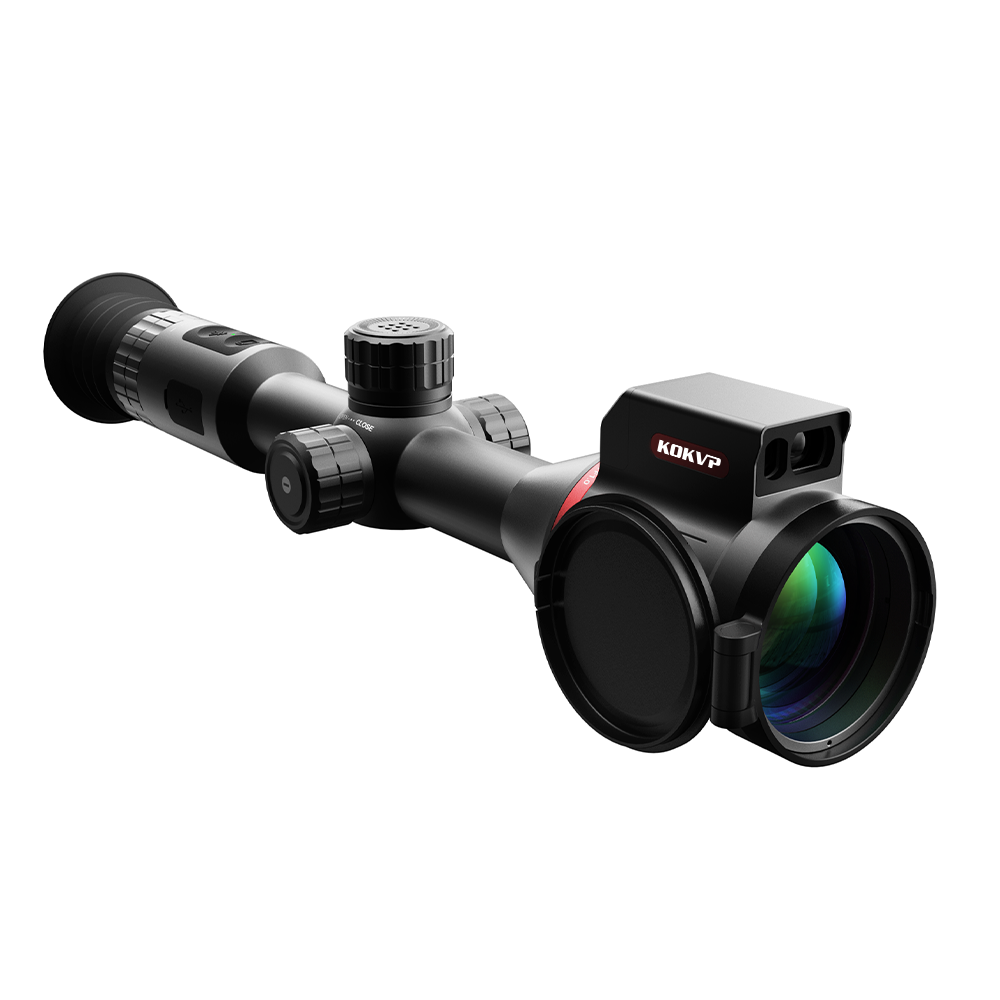

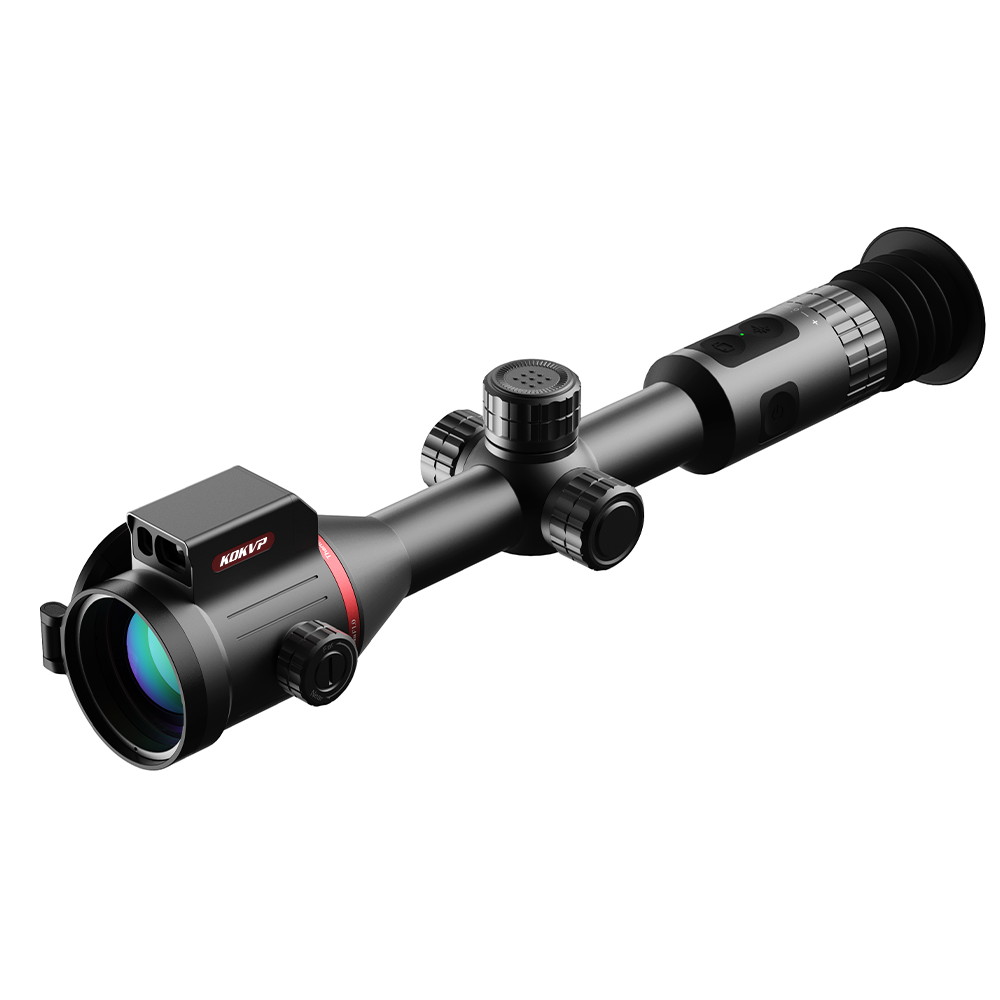

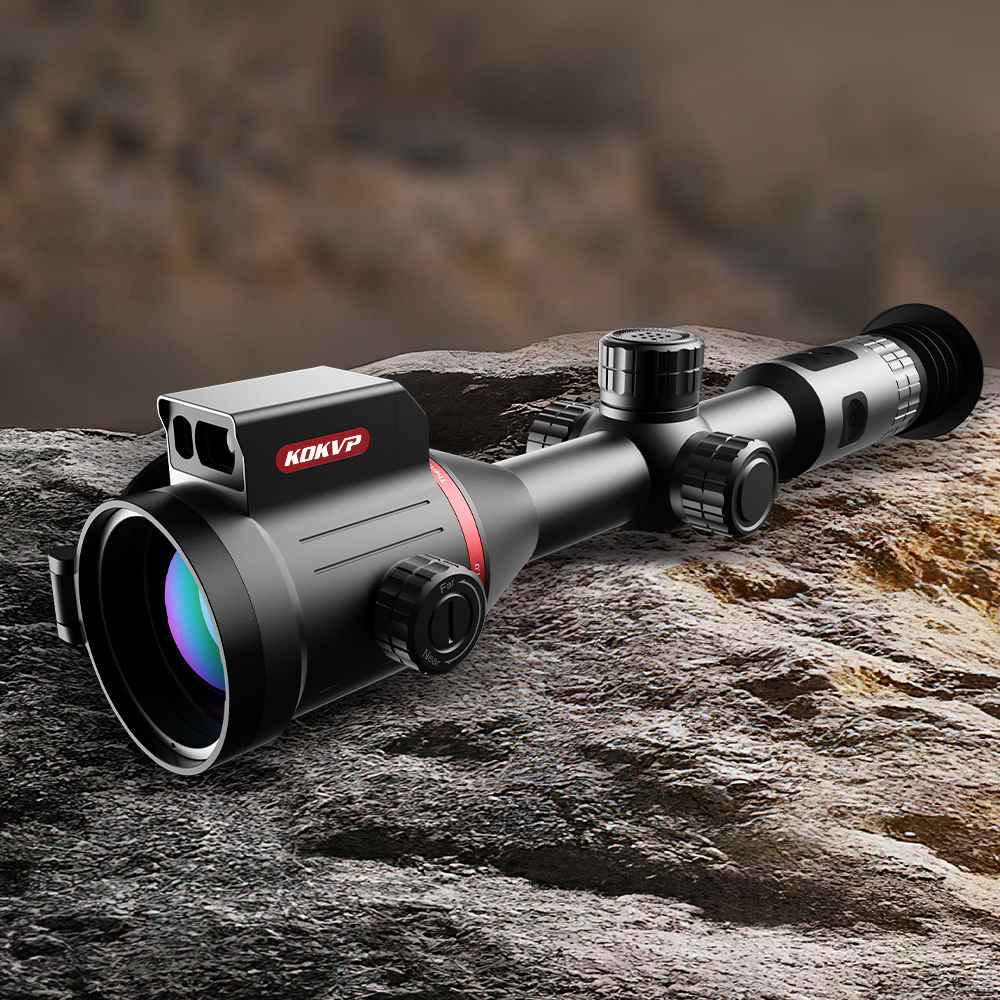

BH-ATG01-335-LRF Thermal Imaging
12-micron high-performance vanadium oxide detector, NETD≤30mK
50Hz real-time image, 1024×768 high definition

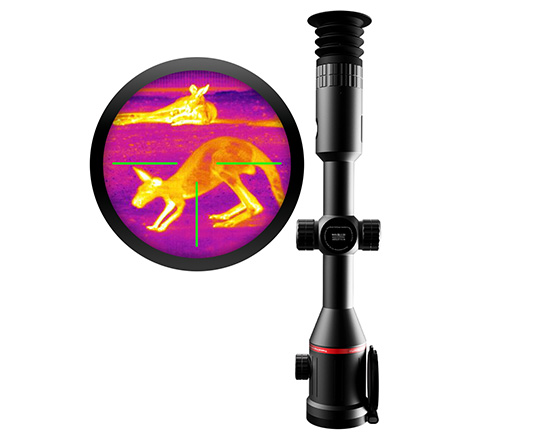

Display modes: black thermal, white thermal, red thermal, green thermal, pseudo-color
WIFI real-time image transmission
1200m accurate ranging
Product Advantages
1.Night Vision , 1700m human/3000m vehicle recognition distance, effective in night, rain and fog.
2.Integrated Ranging & Aiming: ≥1200m laser ranging (accuracy ≤1m) + intelligent/custom ballistics calculation, greatly improving shooting precision.
3.HD & User-Friendly: Up to 384×288 detector resolution, 1280×1024 display resolution, 5 image modes + 8x electronic zoom, delivering clear observation.
4. Stable & Durable: IP66 protection, -20℃～+50℃ operating temperature range, 1000g shock resistance, ≥8h battery life per rechargeable 18650 battery.
5. Rich Functions: Supports WIFI control, photo/video recording, Picture-in-Picture, electronic compass, Type-C power supply and data transmission, suitable for multiple scenarios.
Product Parameters
| Optical Parameters | ||
| Resolution | 384×288 | |
| Frame Rate | 50Hz | |
| Objective Lens | 50mm F1.0 | |
| Field of View | 5.3°×4° | |
| Recognition Distance (Human) | 1700m | |
| Recognition Distance (Vehicle) | 3000m | |
| Electronic Zoom | 1×, 2×, 4×, 8× | |
| Ranging Performance | Ranging Range ≥1200m, Accuracy ≤1m | |
| Focusing Method | Knob Focusing | |
| Display Characteristics | Display Resolution | 1280×1024 |
| Diopter Adjustment | -5SD～+5SD | |
| Exit Pupil Distance | ≥50mm | |
| Exit Pupil Diameter | ≥5mm | |
| Image Modes | White Hot / Black Hot / Red Hot / Green Hot / False Color | |
| Interface | External Power Supply | USB Type-C 5V |
| Video Output | IVDS Format | |
| WIFI | 2.4GHz 802.11 b/g | |
| Battery Life | ≥8h, 1 rechargeable 18650 battery | |
| Appearance | Weight | ≤950g |
| Dimensions | ≤390×80×85mm | |
| Environmental Parameters | Shock | 1000g, 3ms |
| Operating Temperature | -20℃～+50℃ | |
| Storage Temperature | -40℃～+70℃ | |
| Protection Level | IP66 | |
