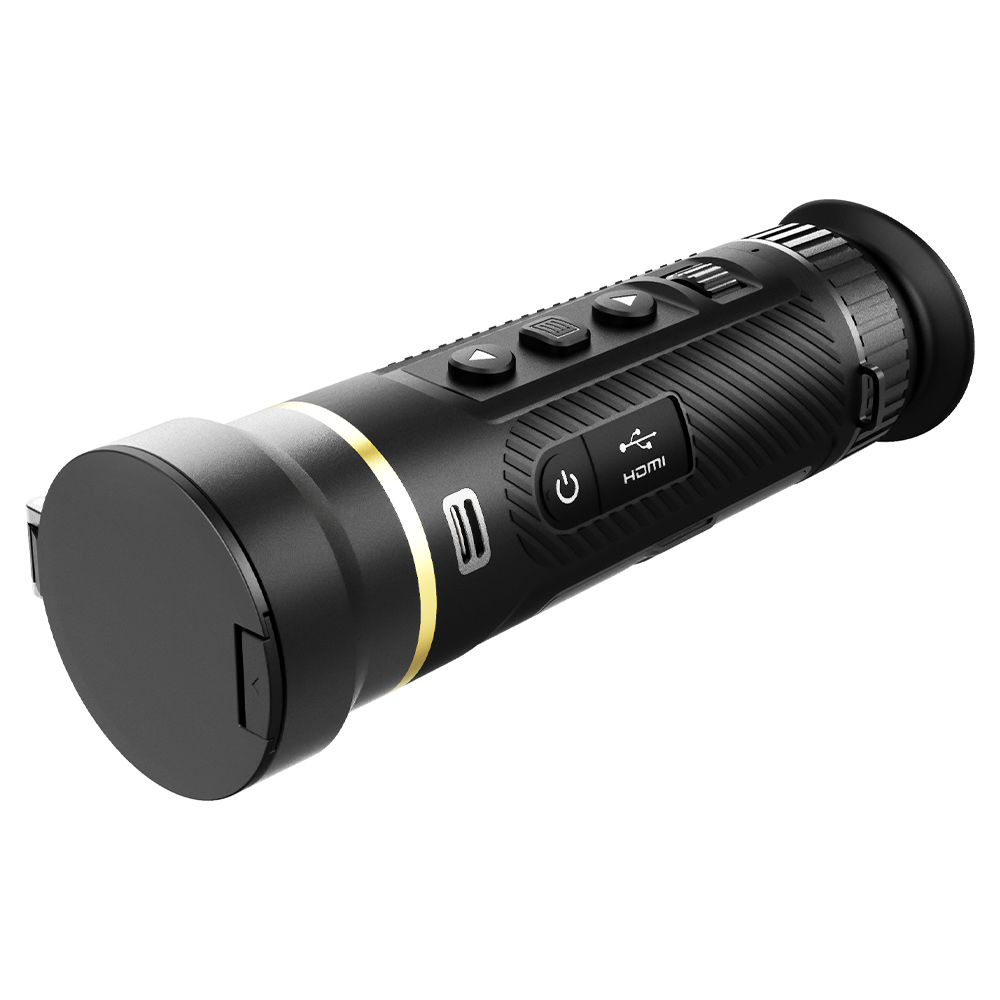

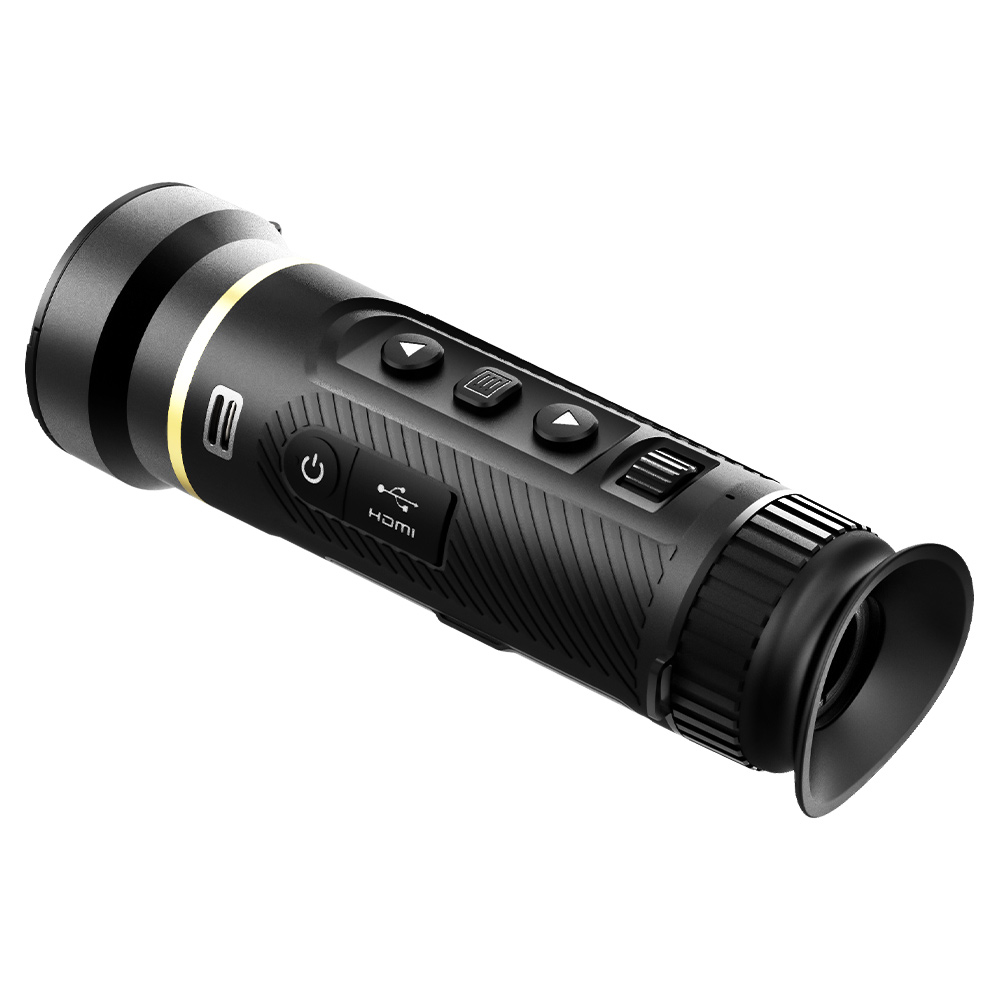

BH-ATS01-650-LRF Thermal Imaging Search
12-micron high-performance vanadium oxide detector, NETD≤30mK
60Hz real-time image display, 1024x768 high-definition display
Embedded high-performance ranging
One-handed operation, excellent ergonomic design
5000mAh high-capacity removable battery, long battery life
Built-in Rangefinder
Product Advantages
1.High-resolution thermal imaging with a 640×512 UFPA (VOx) detector delivers clear and sharp imaging even in total darkness, rain, fog, or smoke.
2.Equipped with a 1000m high‑precision laser rangefinder for accurate distance measurement up to 1 km with ±1m accuracy.
3.Long battery life with a 5000mAh 21700 rechargeable Li‑ion battery, supporting up to 8 hours of continuous use and USB‑C fast charging.
4. Rich intelligent functions including AI recognition, smart tracking, PIP (picture‑in‑picture), multiple color palettes and digital zoom up to 4× for versatile observation.

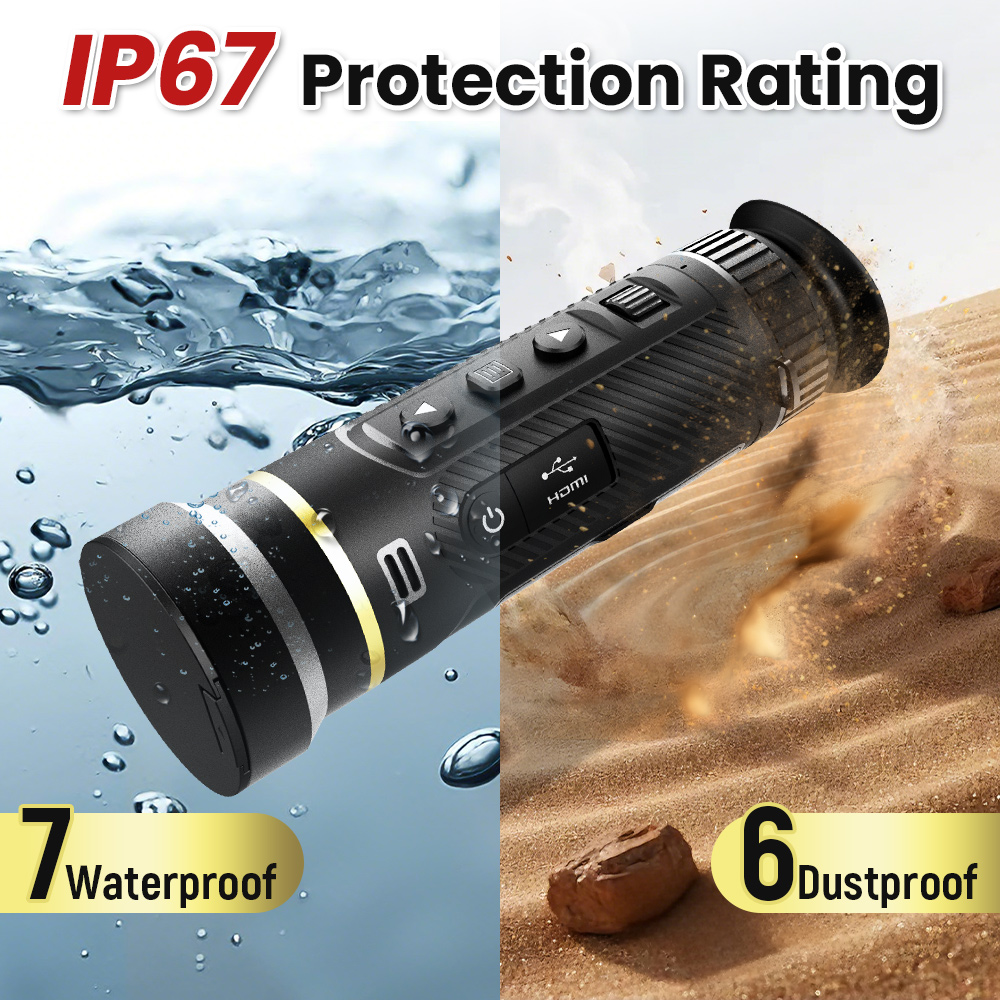

5. Rugged and reliable design with IP67 waterproof and dustproof rating, wide operating temperature range from ‑20°C to 50°C, and durable anodized housing.
Product Parameters
| Optical Parameters | ||
| Resolution | 640×512 | |
| Frame Rate | 60Hz | |
| Objective Lens | 50mm F1.0 | |
| Field of View | 8.8°×7° | |
| Recognition Distance (Human) | 1200m | |
| Recognition Distance (car) | 3000m | |
| Electronic Zoom | 1×, 2×, 4× | |
| Ranging Performance | Ranging Range ≥1200m, Accuracy ≤1m | |
| Focusing Method | Wave Wheel Adjustment | |
| Display Characteristics | Display Resolution | 1280×1024 |
| Diopter Adjustment | -5SD～+5SD | |
| Exit Pupil Distance | 15mm | |
| Exit Pupil Diameter | 6mm | |
Image enhancement | Manually adjust contrast and brightness | |

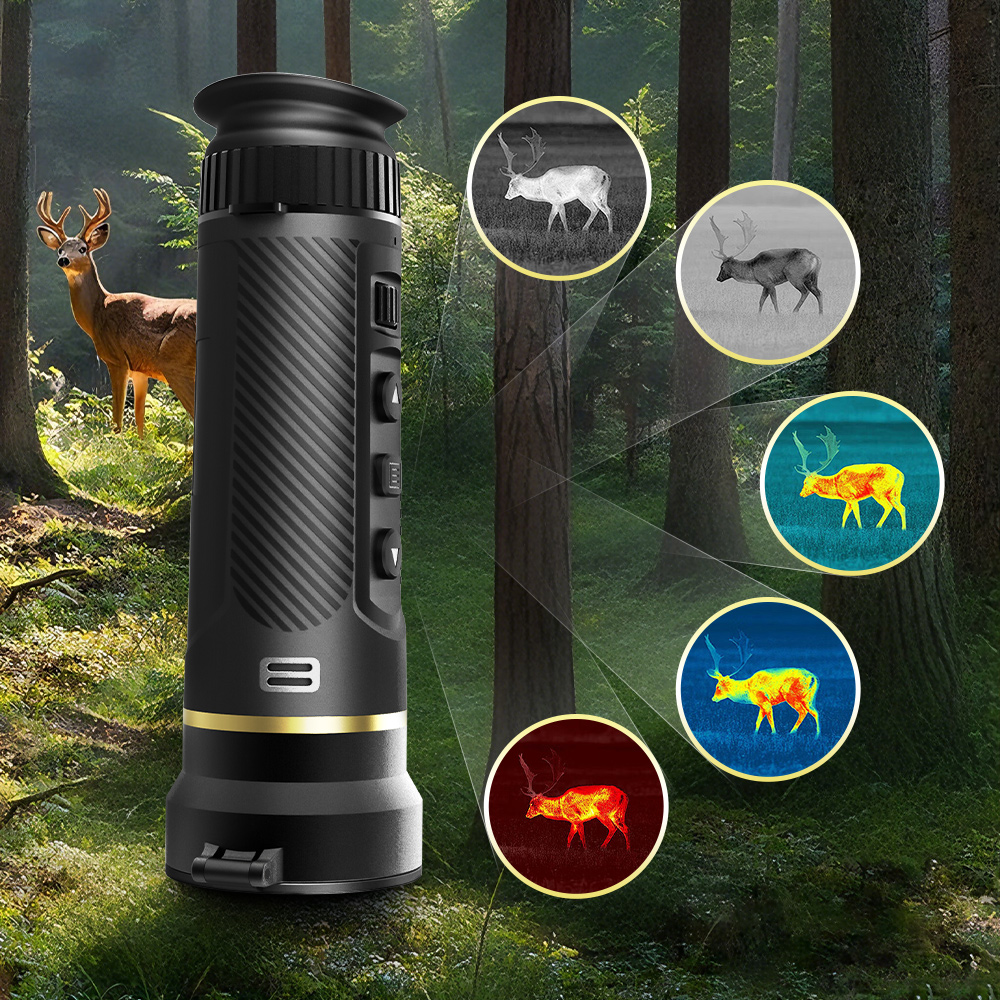

| Image Modes | White Hot / Black Hot / Red Hot / Green Hot / False Color | |
| Interface | External Power Supply | USB Type-C 5V |
| External Video | Yes | |
| WIFI | 2.4GHz 802.11 b/g | |
| Battery Life | ≥12h, 1 rechargeable 21700 battery | |
| Mechanical Interface | 1/4 NUC | |
| Appearance | Weight | ≤800g |
| Dimensions | ≤198×67×67mm | |
| Environmental Parameters | Operating Temperature | -20℃～+50℃ |
| Storage Temperature | -40℃～+70℃ | |
| Protection Level | IP67 | |
