BH-ATL01-225 Thermal Imaging Search
12-micron high-performance vanadium oxide detector, NETD≤20mK
60Hz real-time image display, 1024x768 high-definition display

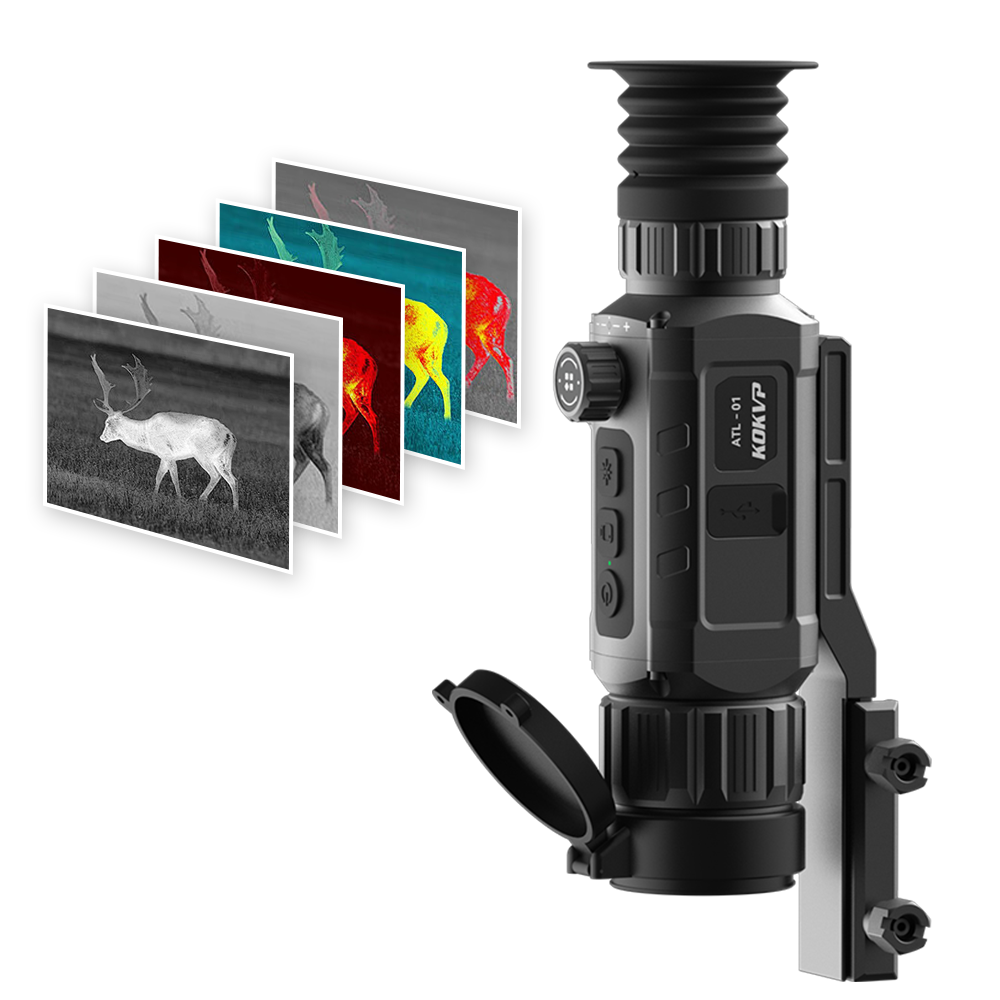

Display modes: black thermal, white thermal, red thermal, green thermal, pseudo-color
WIFI real-time image transmission
Product Advantages
1.High-sensitivity uncooled infrared detector delivers clear thermal imaging day and night.
2. 50Hz frame rate, 1024×768 display, and 5 color modes for sharp, flexible viewing.
3. Supports photo, video, Wi-Fi transmission, and 1–8× digital zoom.

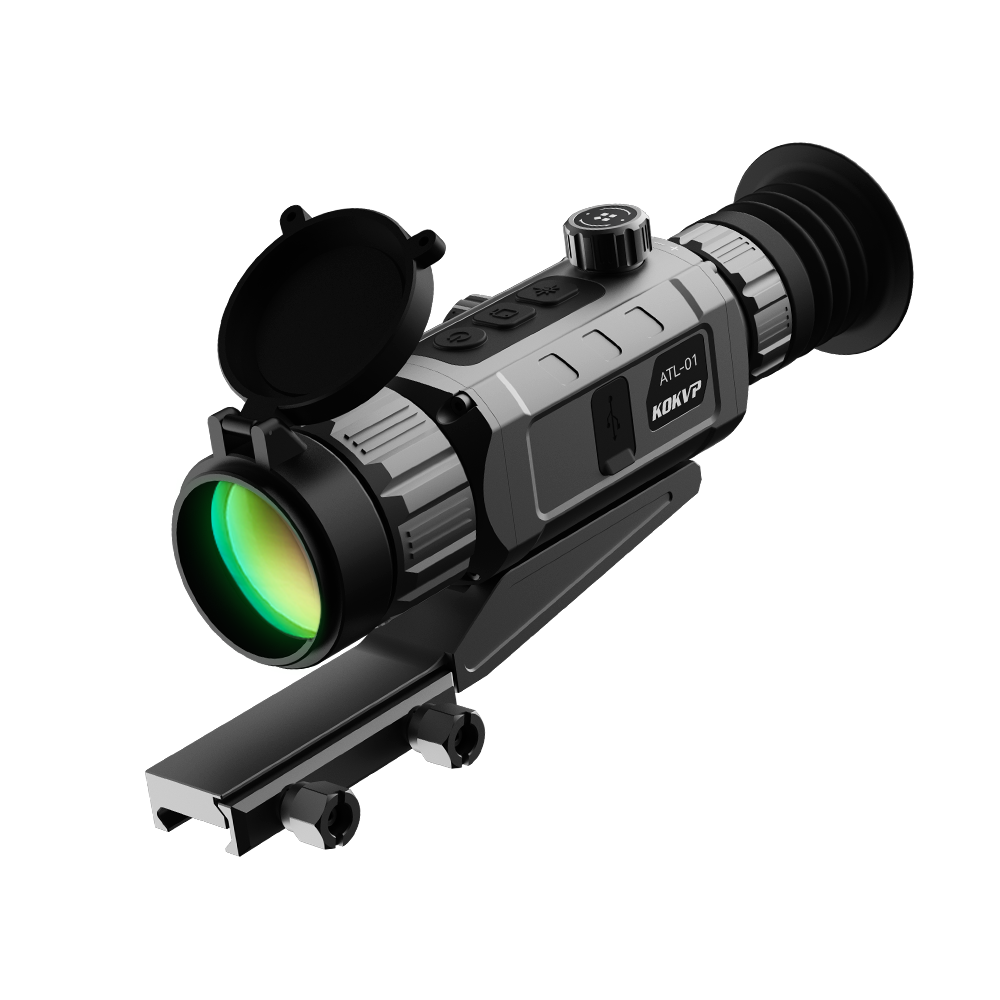

4. Compact, lightweight design with Picatinny rail and IP66 protection.
5. Multi-function: reticle calibration, zero storage, electronic compass, and PiP.
Product Parameters
| Optical Parameters | ||
| Resolution | 256x192 | |
| Frame Rate | 50Hz | |
| Objective Lens | 25mmF1.0 | |
| Field of View | 7°x 5.3° | |
| Recognition Distance (Human) | 600m | |
| Recognition Distance (Vehicle) | 800m | |
| Electronic Zoom | 1x、2x、4x、8x | |
| Focusing Method | Manual Handwheel Focus | |
| Display Characteristics | Display Resolution | 1280×1024 |
| Diopter Adjustment | -5SD～+5SD | |
Image Adjustment | Contrast / Brightness Adjustment | |
| Image Modes | White Hot (W) / Green Hot (G) / Black Hot (B) / Red Hot (R) /Fused(F) | |
| Interface | External Power Supply | USB Type-C 5V |
| WIFI | 2.4GHZ 802.11b/g | |
| Battery Life | ≥6h, 1× 18500 Rechargeable Battery | |
| Appearance | Weight | ≤550g |
| Dimensions | ≤220*74*71mm | |
| Environmental Parameters | Operating Temperature | -20℃～+50℃ |
| Storage Temperature | -40℃～+70℃ | |
| Shock Resistance | 1000g,3ms | |
| Protection Level | IP66 | |
